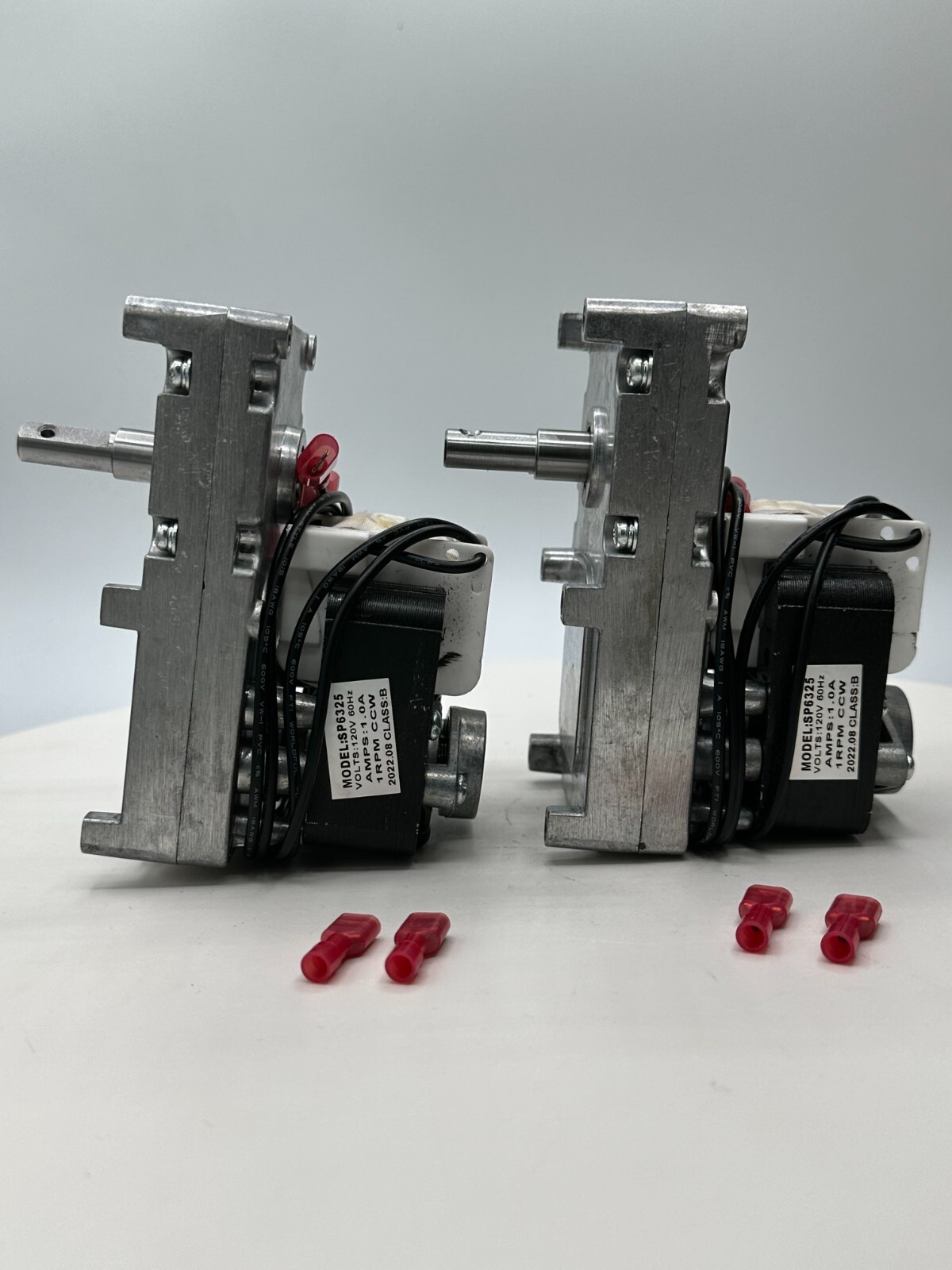

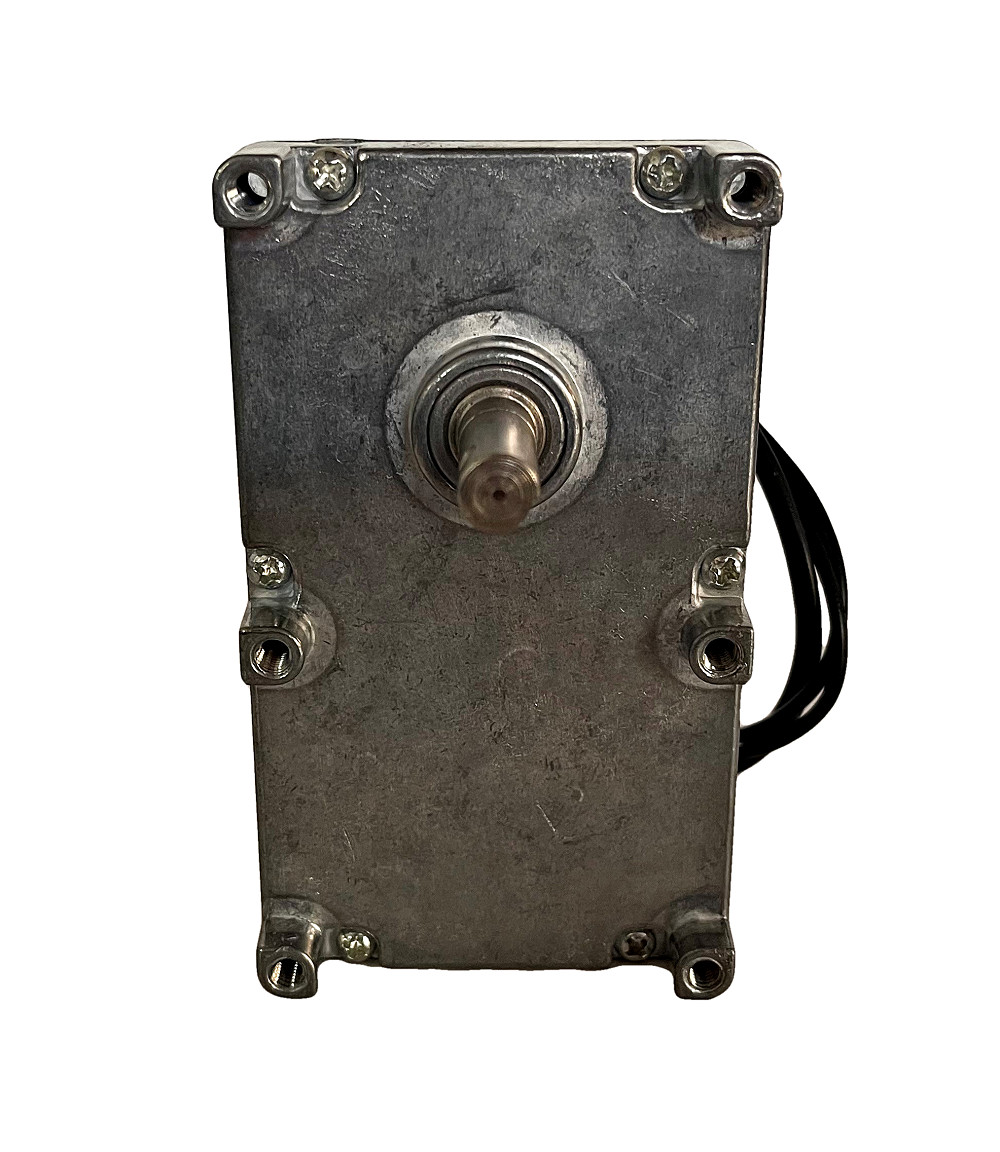

Ashley, Breckwell, King, Vogelzang 1 RPM Auger & Agitator Motor,
80488, 80457USD $47.95
Condition : New
Free Shipping
Notify me when the price drops
We will email you if we find a lower price on this product!
Our Pellethead PH-CCW1H gear motor is an excellent choice for replacement of the American Harvest, Ashley, Breckwell, King, US Stove, and Vogelzang 80488 and 80457 auger and agitator/stirrer motor. This motor has wire electrical connection leads and a hole drilled in the shaft for securing with a cotter/set pin (not included) or with a standard set collar bolt depending on your model. Some models will use this motor as the auger feed motor and others as the agitator/stirrer motor; please see our model notes for specifics. This is a sealed bearing auger motor with no lubrication or oiling required. This 1 RPM Counter Clockwise direction auger feed motor is built to last and backed by a 1 year warranty.
Top Quality Sealed Bearing Aftermarket Replacement
1 RPM Auger Feed/Agitator Stir Motor Assembly; Hole Drilled in Shaft to Spec
Counter Clockwise Rotation (When Facing Shaft)
Guaranteed Newest Stock Inventory
1 Year Manufacturer Warranty
Electrical: 120V, 60 HZ, 1.03 Amps.
Size: 3/8” Diameter x 1” Length Shaft – Flat Edge of Shaft. Designed for installation with either a set collar bolt or cotter/set pin. Wire leads measure 20” in length. We include both male and female spade connectors depending on your stoves configuration. Gearbox Measures 2-¾” Wide x 4-5/8” High x 1” Width (Width to screw mount hole 1-5/16”) Total width including magnet, armature and gearbox measures 2-1/8”.
Product Note: This motor runs cooler than the original and does not have or require the rear plastic cooling fan. This motor has wire leads for electrical connection instead of leads directly on the motor. Connection wires will plug in directly into wire leads; doesn’t matter which wire connects to which lead. We guarantee 100% correct fit and function.
Ashley/King Pellet- 5500 (Auger)
- 5500M (Auger)
- 5500XL (Auger)
- 5510 (Auger)
- AP130 (Auger)
- AP5710 (Auger)
- AP5770 (Auger)
- AP5780 (Auger)
- AP5790 (Auger)
- APC1406 (Auger)
- APCi1406 (Auger)
- KP130 (Auger)
- SP1002 Big E ll (Auger)
- SP6000 Heartland Multi-Fuel – 2002 to current (Auger)
- SP8500 (Agitator)
- 5500/5500M/5500XL (Auger)
- 5502M (Auger)
- 5520 (Auger)
- 8500 Multi-Fuel Furnace (Agitator)
- American Harvest 6033 (Agitator)
- American Harvest 6035 (Agitator)
- American Harvest 6037 (Agitator)
- American Harvest 6039 (Agitator)
- American Harvest 6039HF (Agitator)
- American Harvest 6039i (Agitator)
- American Harvest 6039T (Agitator)
- American Harvest 6041 (Auger)
- American Harvest 6041HF (Auger)
- American Harvest 6041i (Auger)
- American Harvest 6041TP (Auger)
- American Harvest 6100/6200/6220 (Auger & Agitator)
- American Harvest 6300 (Agitator)
- American Harvest 6500 Furnace (Agitator)
- VG130 (Auger)
- VG5770 (Auger)
- VG5790 (Auger)
- 5500
- 5500M
- 5500XL
- 5502M
- 5510
- AP130
- AP5710
- AP5770
- AP5780B
- AP5780PS
- AP5780SS
- AP5790
- APC1406
- APCi1406
- KP130
- SP1002 Big E ll
- SP6000 Heartland Multi-Fuel
- SP8500
- 5500/5500M/5500XL
- 5520
- 8500 Multi-Fuel Furnace
- American Harvest 6033
- American Harvest 6035
- American Harvest 6037
- American Harvest 6039
- American Harvest 6039HF
- American Harvest 6039i
- American Harvest 6039T
- American Harvest 6041
- American Harvest 6041HF
- American Harvest 6041i
- American Harvest 6100/6200/6220
- American Harvest 6300 Furnace
- American Harvest 6500 Furnace
- VG130
- VG5770
- VG5790
